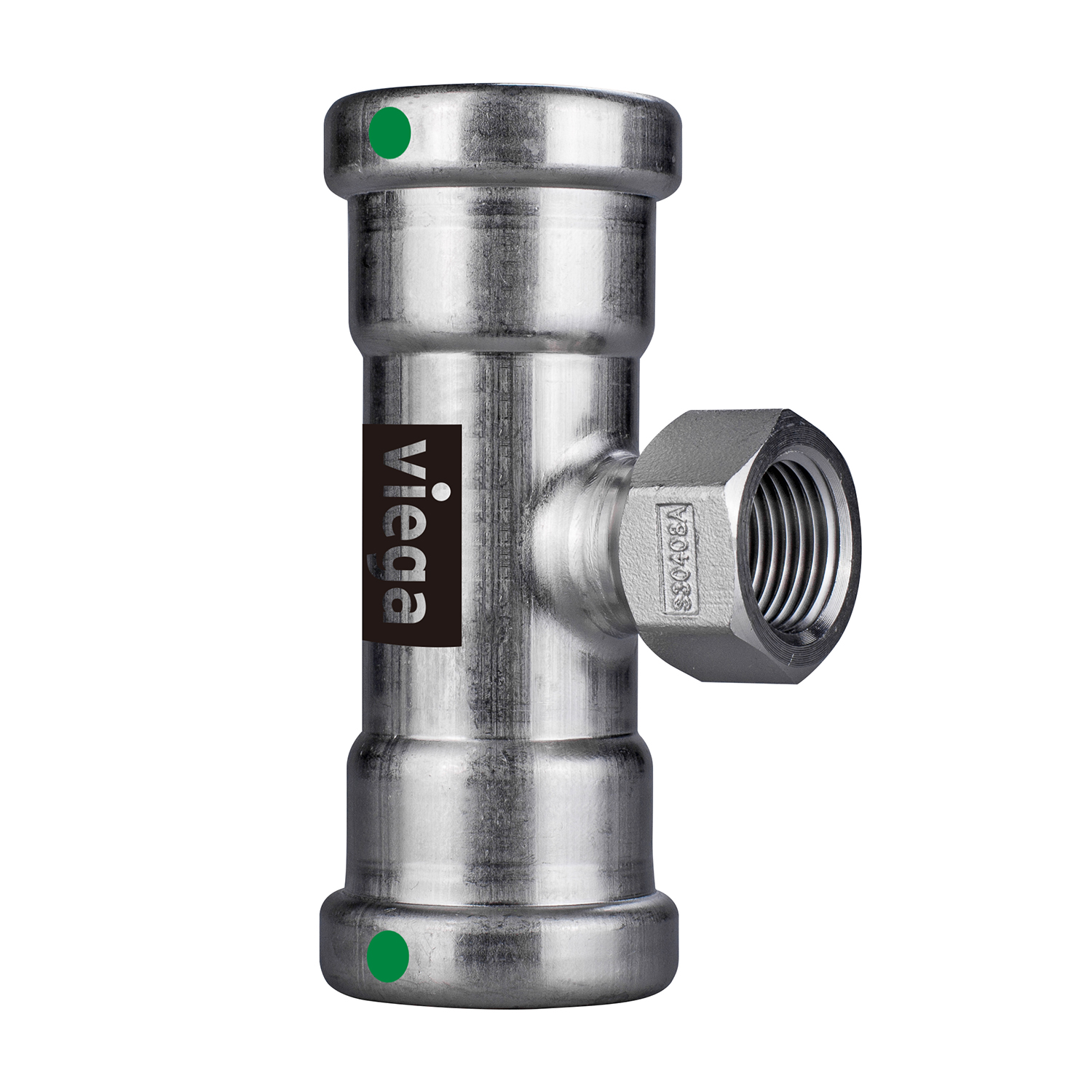

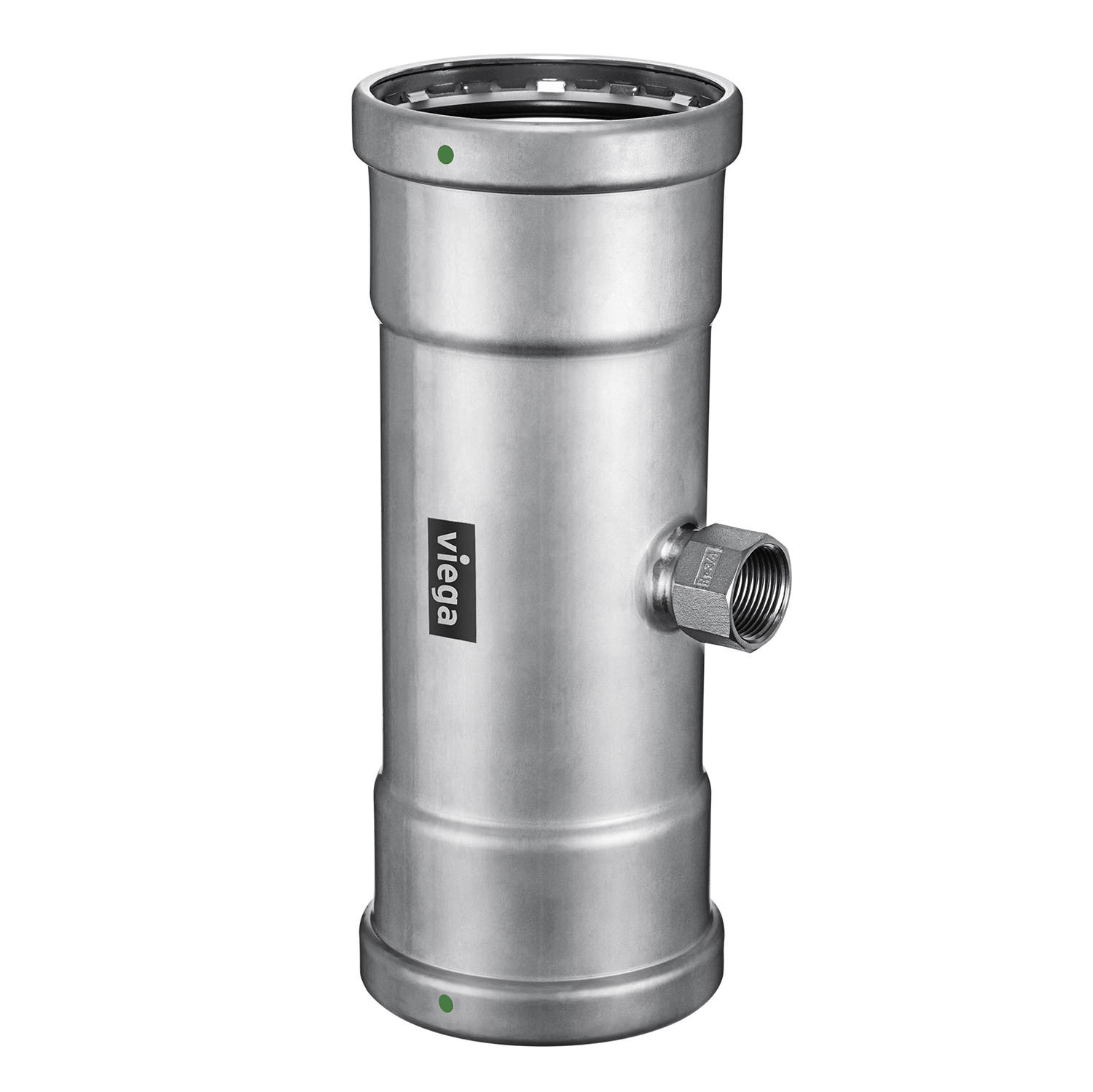

Cleverpress 内螺纹三通
Cleverpress 内螺纹三通
- 316L不锈钢（S31603）
- 卡压连接，内螺纹
组件
EPDM密封圈，分离圈，抗拔圈
产品参数
| DN | d | Rp | PU | 料号 |
| 15 | 16.0 | ½ | 5 | 6.33.01.19015012 |
| 20 | 20.0 | ½ | 5 | 6.33.01.19020012 |
| 20 | 20.0 | ¾ | 5 | 6.33.01.19020034 |
| 25 | 25.4 | ½ | 5 | 6.33.01.19025012 |
| 25 | 25.4 | ¾ | 5 | 6.33.01.19025034 |
| 25 | 25.4 | 1 | 5 | 6.33.01.19025001 |
| 32 | 32.0 | ½ | 5 | 6.33.01.19032012 |
| 32 | 32.0 | ¾ | 5 | 6.33.01.19032034 |
| 32 | 32.0 | 1 | 5 | 6.33.01.19032001 |
| 32 | 32.0 | 1¼ | 5 | 6.33.01.19032114 |
| 40 | 40.0 | ½ | 1 | 6.33.01.19040012 |
| 40 | 40.0 | ¾ | 1 | 6.33.01.19040034 |
| 40 | 40.0 | 1 | 1 | 6.33.01.19040001 |
| 40 | 40.0 | 1¼ | 1 | 6.33.01.19040114 |
| 40 | 40.0 | 1½ | 1 | 6.33.01.19040112 |
| 50 | 50.8 | ½ | 1 | 6.33.01.19050012 |
| 50 | 50.8 | ¾ | 1 | 6.33.01.19050034 |
| 50 | 50.8 | 1 | 1 | 6.33.01.19050001 |
| 50 | 50.8 | 1½ | 1 | 6.33.01.19050112 |
| 50 | 50.8 | 2 | 1 | 6.33.01.19050002 |
| 60 | 60.3 | ¾ | 1 | 6.33.01.19060034 |
| 65 | 76.1 | ¾ | 1 | 6.33.01.19065034 |
| 80 | 88.9 | ¾ | 1 | 6.33.01.19080034 |
| 100 | 101.6 | ¾ | 1 | 6.33.01.19100034 |
