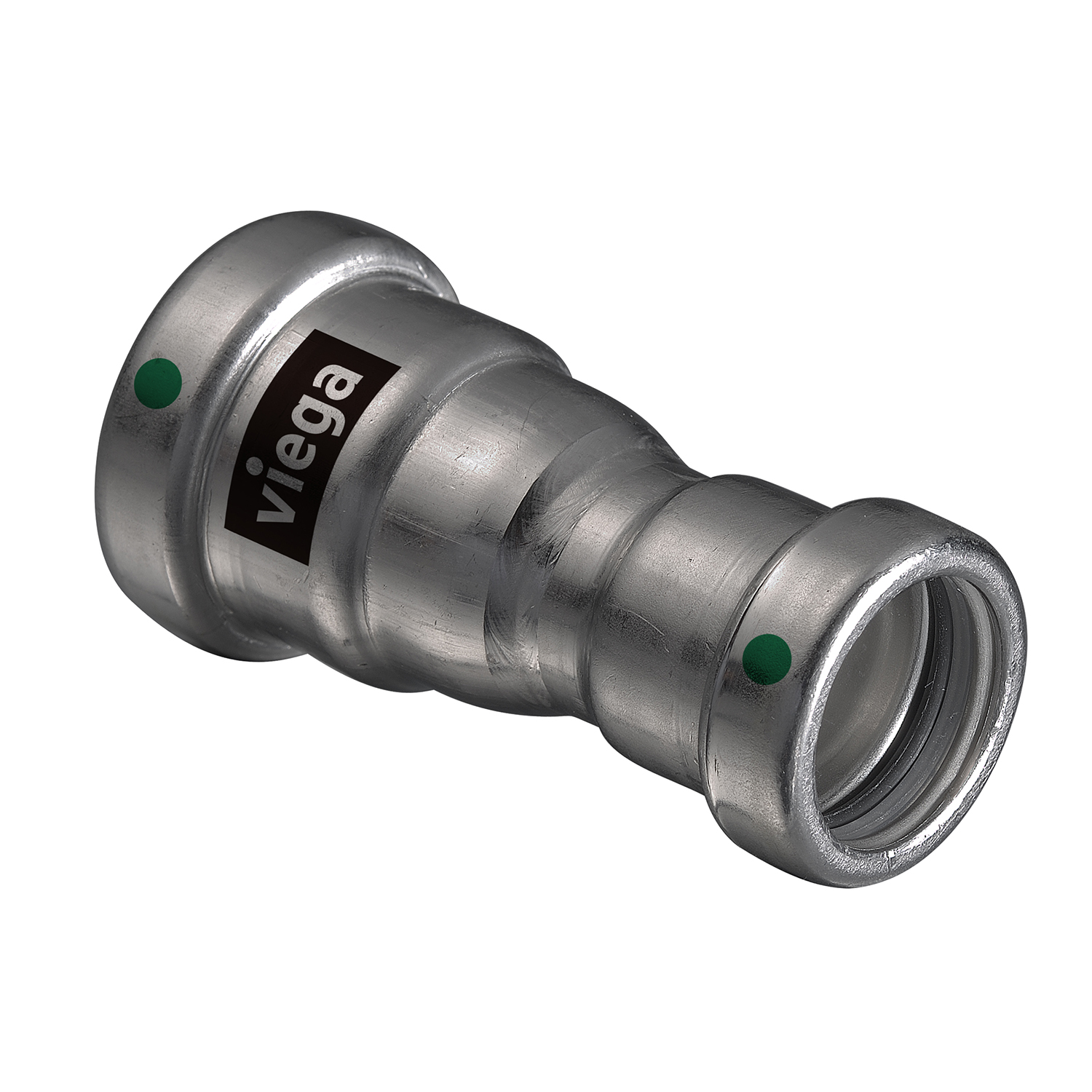

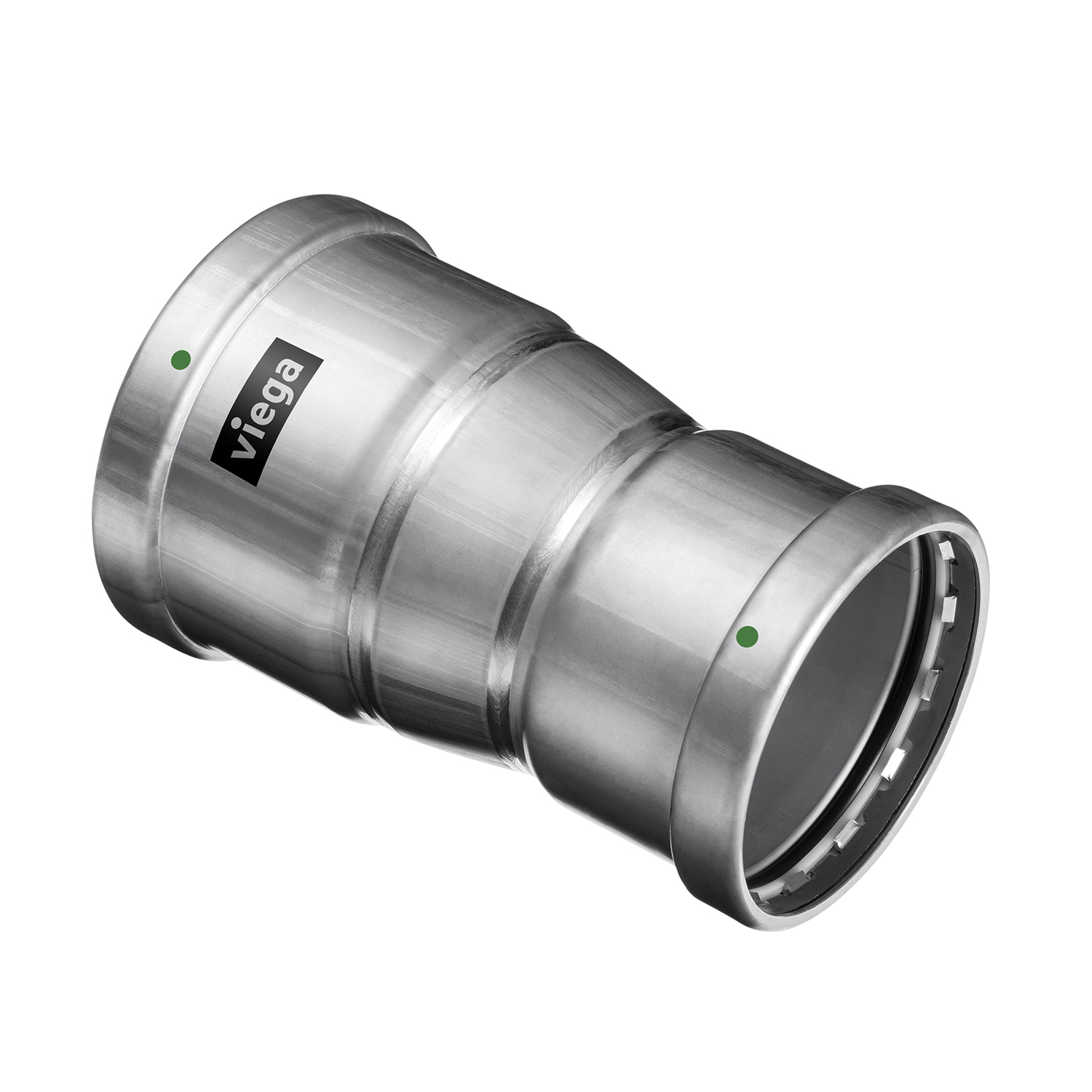

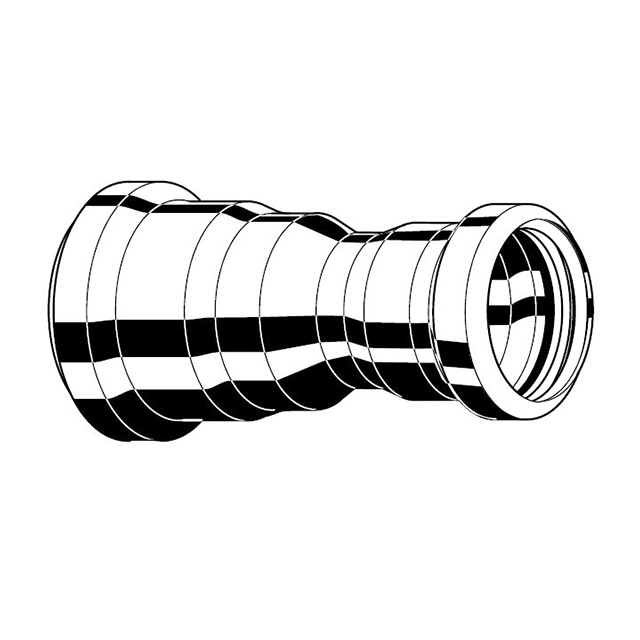

Cleverpress 异径对接头
Cleverpress 异径对接头
- 316L不锈钢（S31603）
- 卡压连接
组件
EPDM密封圈，分离圈，抗拔圈
产品参数
| DN1 | DN2 | d1 | d2 | PU | 料号 |
| 20 | 15 | 20 | 16.0 | 10 | 6.33.01.02020015 |
| 25 | 15 | 25 | 16.0 | 10 | 6.33.01.02025015 |
| 25 | 20 | 25 | 20.0 | 5 | 6.33.01.02025020 |
| 32 | 15 | 32 | 16.0 | 5 | 6.33.01.02032015 |
| 32 | 20 | 32 | 20.0 | 5 | 6.33.01.02032020 |
| 32 | 25 | 32 | 25.4 | 5 | 6.33.01.02032025 |
| 40 | 15 | 40 | 16.0 | 1 | 6.33.01.02040015 |
| 40 | 20 | 40 | 20.0 | 1 | 6.33.01.02040020 |
| 40 | 25 | 40 | 25.4 | 1 | 6.33.01.02040025 |
| 40 | 32 | 40 | 32.0 | 1 | 6.33.01.02040032 |
| 50 | 15 | 50 | 16.0 | 1 | 6.33.01.02050015 |
| 50 | 20 | 50 | 20.0 | 1 | 6.33.01.02050020 |
| 50 | 25 | 50 | 25.4 | 1 | 6.33.01.02050025 |
| 50 | 32 | 50 | 32.0 | 1 | 6.33.01.02050032 |
| 50 | 40 | 50 | 40.0 | 1 | 6.33.01.02050040 |
| 60 | 40 | 60 | 40.0 | 1 | 6.33.01.02060040 |
| 60 | 50 | 60 | 50.8 | 1 | 6.33.01.02060050 |
| 65 | 40 | 76 | 40.0 | 1 | 6.33.01.02065040 |
| 65 | 50 | 76 | 50.8 | 1 | 6.33.01.02065050 |
| 65 | 60 | 76 | 60.3 | 1 | 6.33.01.02065060 |
| 80 | 50 | 88 | 50.8 | 1 | 6.33.01.02080050 |
| 80 | 60 | 88 | 60.3 | 1 | 6.33.01.02080060 |
| 80 | 65 | 88 | 76.1 | 1 | 6.33.01.02080065 |
| 100 | 50 | 101 | 50.8 | 1 | 6.33.01.02100050 |
| 100 | 60 | 101 | 60.3 | 1 | 6.33.01.02100060 |
| 100 | 65 | 101 | 76.1 | 1 | 6.33.01.02100065 |
| 100 | 80 | 101 | 88.9 | 1 | 6.33.01.02100080 |
