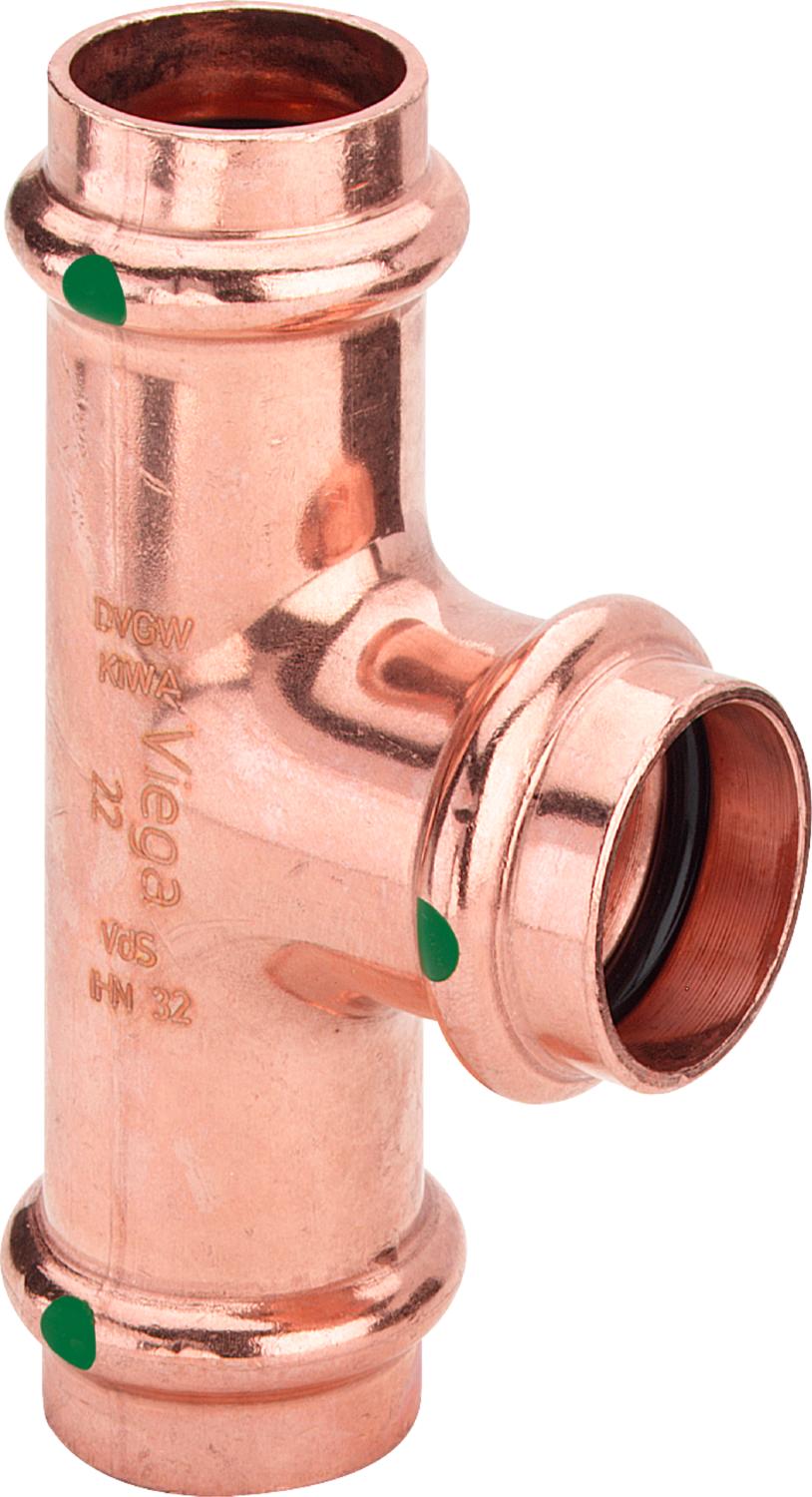

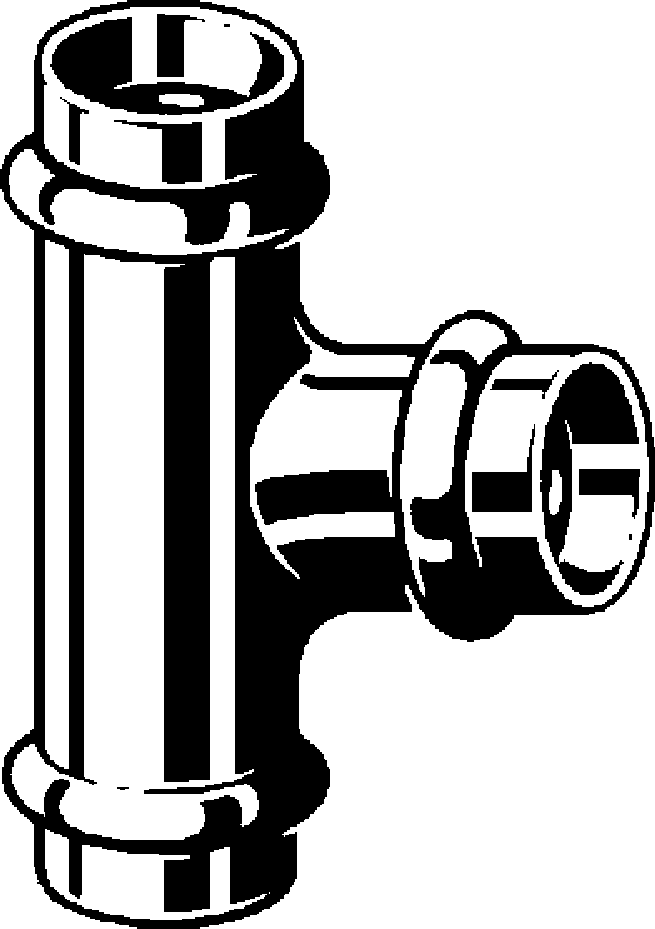

Profipress 异径三通
Profipress 异径三通
带有SC-Contur
- 铜
- 卡压接头
组件
EPDM密封部件
型号：2418
产品参数
| Vds | d1 | d2 | d3 | PU | 料号 |
| 15 | 18 | 15 | 10 | 322 724 | |
| 15 | 22 | 15 | 10 | 322 700 | |
| 18 | 15 | 18 | 10 | 291 938 | |
| 22 | 15 | 15 | 10 | 292 010 | |
| 22 | 15 | 18 | 5 | 315 078 | |
| 22 | 15 | 22 | 10 | 292 027 | |
| 22 | 18 | 15 | 5 | 315 061 | |
| 22 | 18 | 18 | 5 | 315 054 | |
| 22 | 18 | 22 | 10 | 291 945 | |
| 22 | 22 | 15 | 5 | 315 047 | |
| 22 | 22 | 18 | 5 | 315 030 | |
| 22 | 28 | 22 | 5 | 322 687 | |
| 28 | 15 | 22 | 5 | 324 841 | |
| 28 | 15 | 28 | 5 | 295 189 | |
| 28 | 18 | 22 | 5 | 324 858 | |
| 28 | 18 | 28 | 5 | 315 023 | |
| √ | 28 | 22 | 22 | 5 | 307 899 |
| √ | 28 | 22 | 28 | 5 | 295 196 |
| √ | 28 | 28 | 22 | 5 | 315 016 |
| 35 | 15 | 35 | 5 | 324 865 | |
| 35 | 18 | 35 | 5 | 324 872 | |
| √ | 35 | 22 | 28 | 5 | 324 889 |
| √ | 35 | 22 | 35 | 5 | 292 034 |
| √ | 35 | 28 | 28 | 5 | 324 896 |
| √ | 35 | 28 | 35 | 5 | 292 041 |
| √ | 35 | 35 | 22 | 5 | 365 882 |
| √ | 35 | 35 | 28 | 5 | 365 080 |
| √ | 42 | 22 | 42 | 5 | 324 902 |
| √ | 42 | 28 | 42 | 5 | 292 058 |
| √ | 42 | 35 | 42 | 5 | 292 065 |
| √ | 54 | 22 | 54 | 1 | 324 919 |
| √ | 54 | 28 | 54 | 1 | 324 926 |
| √ | 54 | 35 | 54 | 1 | 324 933 |
| √ | 54 | 42 | 54 | 1 | 292 072 |
